Optional 38-inch installation trim.
Details
One trim kit for the exact legacy RBF30WC-FG opening; choose this or the 44-inch alternative, not both.
View product details
Dimplex
Dimplex Revillusion 30-Inch Weathered Concrete Firebox — RBF30WC-FG
From $2,059.99
Dimplex ·

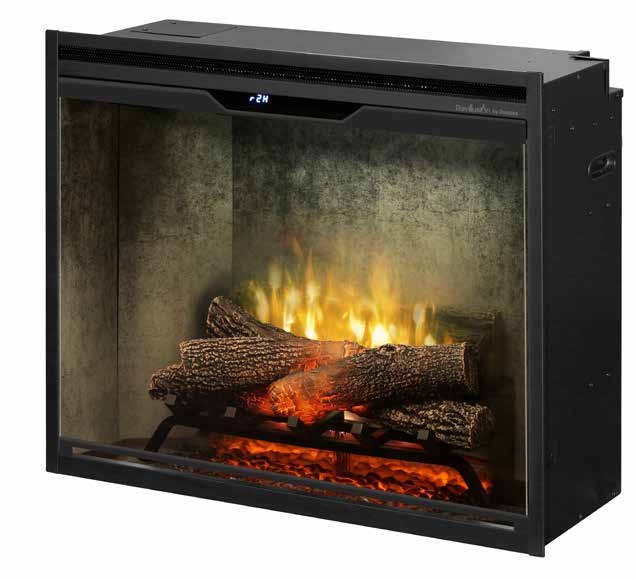

Dimplex Revillusion® 30-Inch Weathered Concrete Electric Firebox — RBF30WC-FG
Revillusion® flames and a weathered-concrete interior, with the front glass and plug kit included in this exact legacy package.
$2,059.99
NO SALES TAX on this itemExcluding FL and CA
In Stock
FREE ShippingShipping details
Hassle Free ReturnsReturn details
Speak to an Expert
Complete your setup
Optional 44-inch installation trim.
Details
One trim kit for the exact legacy RBF30WC-FG opening; choose this or the 38-inch alternative, not both.
View product detailsYour setup · 0 extras$2,059.99
Exact modelRBF30WC-FG / 500002389
InteriorWeathered concrete
Overall firebox31⅛ W × 26⅝ H × 12⅛ D in
Framed opening30⅝ W × 26 3/16 H × 12½ D in
Traditional fire. An architectural backdrop.
The weathered-concrete interior gives this legacy Revillusion® firebox a quieter, architectural backdrop for the logs and flame effect. The exact RBF30WC-FG package includes its front glass and plug kit, so those finishing items should not be ordered a second time.
Revillusion® Flame Technology uses a partially frosted acrylic flame panel to create depth around the log presentation. Adjustable mood lighting and built-in touch controls let the fireplace function as an evening focal point even when heat is not needed.
Plan the framed opening from the current exact-model installation guide, not the nominal 30-inch name. Its quarter-inch self-trimming flange needs a precisely finished opening. The installer should also confirm the intended electrical configuration before the wall is completed.
The right fit starts with the exact model.
Legacy RBF30WC-FG / material 500002389; precise self-trimming built-in installation
| Exact model | RBF30WC-FG / 500002389 |
|---|---|
| Interior | Weathered concrete |
| Overall firebox | 31⅛ W × 26⅝ H × 12⅛ D in |
| Framed opening | 30⅝ W × 26 3/16 H × 12½ D in |
| Supply options | 120 / 208 / 240 V — installation-dependent |
| Heater rating | 1,300 / 1,975 / 2,575 W at 120 / 208 / 240 V |
| Flame-only rating | 40 W |
| Included finishing equipment | Front glass and 120 V plug kit |
Match the complete ordering code
Accessory fit follows the documented model and generation. A similar product name or nominal width does not establish interchangeability.
The right pieces, clearly accounted for.
| In the box | Contents & quantities |
|---|---|
| Firebox & interior | RBF30WC-FG firebox with weathered-concrete surround and log display |
| Front glass | 30-inch tempered front glass, material 500000423 |
| Plug kit | RBFPLUG kit supplied with the exact FG package |
| Controls | Multi-function remote and built-in touch controls |
| Installation trim | Optional compatible trim sold separately |
Know exactly what you’re bringing home.
Exact accessory details
- Exact model
- RBF30WC-FG / 500002389
- Interior
- Weathered concrete
- Overall firebox
- 31⅛ W × 26⅝ H × 12⅛ D in
- Framed opening
- 30⅝ W × 26 3/16 H × 12½ D in
- Supply options
- 120 / 208 / 240 V — installation-dependent
- Heater rating
- 1,300 / 1,975 / 2,575 W at 120 / 208 / 240 V
- Flame-only rating
- 40 W
- Included finishing equipment
- Front glass and 120 V plug kit
Let’s get your project right.
Is this the same product as the newer REV30-WC?
This listing is the legacy RBF30WC-FG, material 500002389. The newer REV generation has its own model and configuration data. Do not transfer accessory, control or installation assumptions between them solely because both have a weathered-concrete interior.
Do I need to buy the front glass or plug kit separately?
No. The exact manufacturer specification names the glass and plug kit as standard equipment in RBF30WC-FG. Check the package code when comparing listings so included components are not added again as paid accessories.
What rough opening should my installer use?
The current exact-model installation guide lists 30⅝ inches wide, 26 3/16 inches high and 12½ inches deep. Its detailed framing figure takes precedence over the older specification prose that rounds the height to 26¼ inches.
Why does the finished opening need to be precise?
The installation guide explains that the quarter-inch self-trimming flange is intended to finish the appearance, not to cover a broadly oversized opening. Follow the exact framing figure and final surround dimensions.
Can the fireplace run without heat?
Yes. The exact specification lists flame-only operation as well as flame-and-heat operation, with a 40-watt flame-only rating. The visual presentation can therefore be used independently of room heating.
Why are there three heater wattages?
The manufacturer lists 1,300 watts at 120 volts, 1,975 watts at 208 volts and 2,575 watts at 240 volts. Output depends on the installed electrical configuration; the supplied plug kit does not convert a normal outlet into a higher-voltage supply.
Does this electric firebox need a chimney?
No combustion venting is required by the manufacturer specification. The electric firebox still needs its stated installation clearances, electrical supply and service access.
Which installation trims are documented for this model?
The exact specification lists RBF30TRIM38 and RBF30TRIM44. These are optional finish choices, not two required layers, and the selected trim should suit the finished opening without being mistaken for the front glass.
How is the flame display controlled?
The exact model specification identifies built-in touch controls and a multi-function remote. Its flame panel and adjustable firebox mood lighting are part of the legacy Revillusion presentation; a phone-app feature is not established by this model’s accepted source.
What warranty protection applies?
The exact manufacturer specification provides a two-year limited warranty on electrical components. Keep the purchase and model records, and read the linked owner guide for service eligibility, coverage conditions and exclusions.
RATINGS & OWNER INSIGHTS
A closer look at the Revillusion Electric Firebox.
What owners report. What our research finds.
Revillusion Electric Firebox family
EXTERNAL CUSTOMER FEEDBACK
Market Rating
4.8/5 (24)
OUR PRODUCT ASSESSMENT
Hearth Outpost Score
8.1/10
Revillusion is the range we would look at when the goal is a convincing traditional fireplace opening rather than a narrow ribbon of colored light. The physical logs and background choices give the room a more familiar hearth character. We like the depth of the presentation, but the opening's proportions and viewing angle still matter. Check the exact model's electrical setup and included equipment before ordering; the smaller REV24 and the larger fireboxes are not interchangeable installation plans.
See the score breakdown
Performance8.4
Build quality & materials8.1
Design & finish8.6
Features & capability7.8
Ease of ownership7.7
Durability & reliability7.4
Warranty & support7.5
What owners are saying
Owners who like Revillusion often point to realistic flames, attractive appearance and straightforward installation. Other feedback is less enthusiastic about flame size, log proportions or operating noise. One installation account highlights the space needed behind the unit for the plug. Together, those experiences make viewing angle, framing depth and checking the supplied accessories especially useful before purchase.
What stands out
A fireplace-shaped focal point
The range includes conventional and portrait proportions, with different interior finishes. That makes it easier to match an existing mantel or build a traditional feature without forcing a wide linear opening into the room.
Depth rather than decoration alone
The log arrangement and flame presentation are intended to look like a fire within a firebox. Owners who enjoy the result often emphasize the realism. Choose the background and opening height together; those decisions affect the finished impression more than simply choosing the widest available unit.
What to weigh before buying
Match the exact model
REV24 uses a different electrical arrangement from the larger current REV models. Legacy RBF versions also need their own documentation. Confirm the glass, trim, remote and plug kit included with the exact unit before buying extras; otherwise it is easy to order something already supplied.
See the effect at room distance
Not every owner likes the flame-to-log proportions, and some mention noise or a more modest flame than expected. Check the view from the sofa and allow space for the cord or wiring route instead of fitting the rear of the unit tightly against an obstruction.
Value Consideration
We would prioritize Revillusion when a traditional hearth appearance is central to the project. It can justify spending more than a basic insert if the deeper visual impression is what you want to see every day. Compare the complete installed package and exact warranty coverage, including the distinction between in-home service and parts coverage in later periods.
Sources & Methodology
About the Market Rating
The 4.8/5 Market Rating is based on 24 eligible customer ratings reviewed by Hearth Outpost. The star breakdown distribution shows how those customers rated the product. These are aggregated customer reviews across the market and not random sampling.
About our research
The family assessment pools sizes, fuel types, generations and colors. Equipment differs by configuration. The HOP score is a price-independent research assessment. Owner themes summarize the accessible sample.
Research updated October 29, 2026.
Reviews & Ratings MethodologyCONFIDENCE BEYOND THE FIRST FIRE
Confidence, built into your fireplace.
Two-year limited protection on electrical components, with manufacturer service support under the owner guide’s eligibility and coverage conditions.
Manuals & documents
RBF30WC-FG installation & user guide RBF30WC-FG product specification & features RBF30WC-FG architectural specificationA real person. Useful advice.
