Cast stainless steel grids
Cast stainless steel cooking grids provide the listed cooking surface for this configuration.
Similar items
Home / Broil King / Imperial Built-In / Imperial QS 690 Built-In — 44 Inch
1 / 7 photos
Broil King / Imperial Built-In

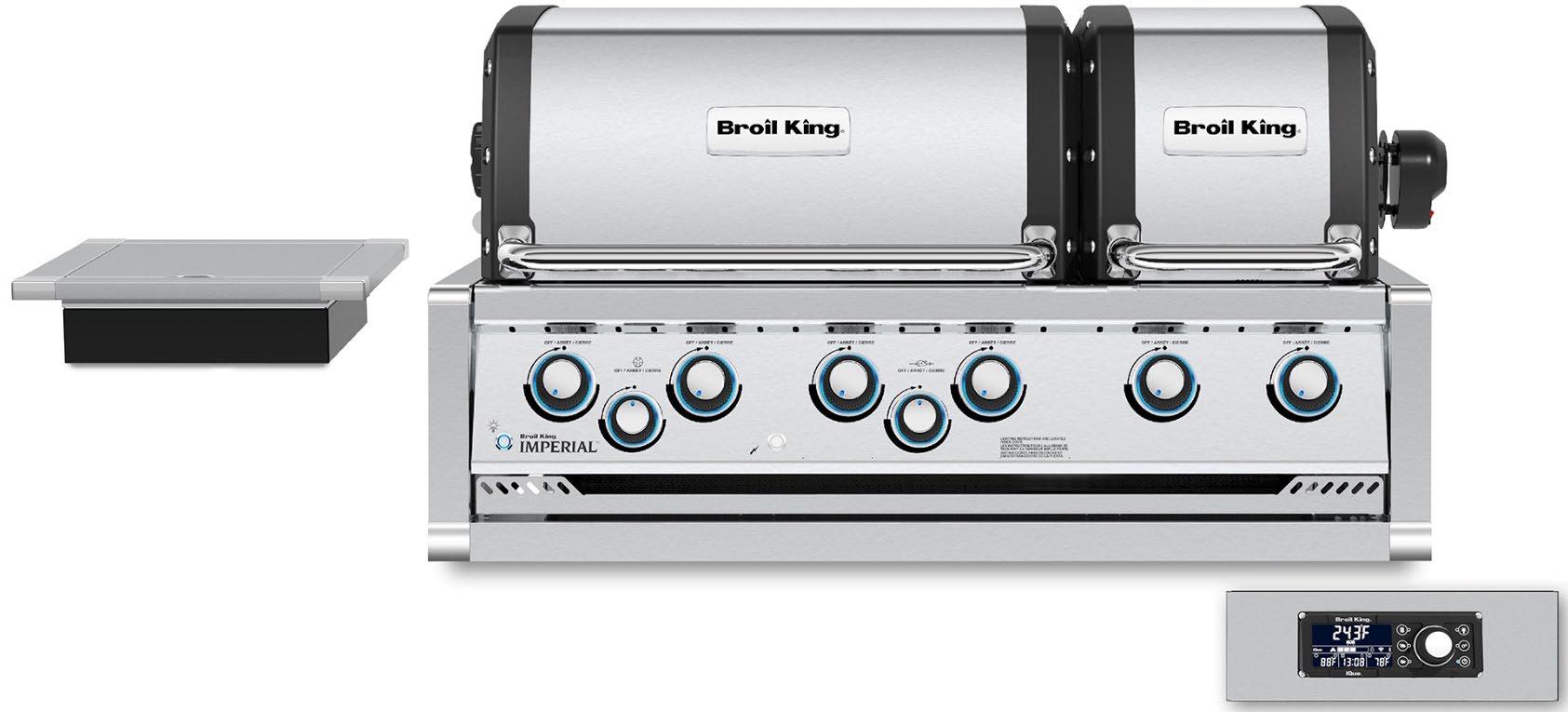

Imperial QS 690 Built-In — 44 Inch
Build your cooking station around 750 square inches of primary cooking space and 6 stainless steel Dual-Tube burners.
Features
Primary cooking area750 sq. in.
Main burners6 Dual-Tube burners
Built-in
The Imperial QS 690 Built-In combines cast stainless steel cooking grids with a stainless steel Flav-R-Wave system and electronic ignition. Plan preparation and serving space around the grill head as part of the complete outdoor kitchen. Two independent cookboxes give you separate cooking areas within the grill head. Built-in iQue technology adds control features to the cooking station, with illuminated controls and oven lighting listed for this configuration. A rear burner and rotisserie kit are listed for this exact model.
Dual-Tube burners
Stainless steel Dual-Tube burners form the main heating system beneath the cooking surface.
Flav-R-Wave cooking system
The stainless steel system sits beneath the cooking grids and manages drippings while you grill.
What’s included in the box
Built-in grill head in selected factory fuel configuration
Rotisserie kit
Separate 10,000 BTU infrared side burner
iQue controller
Two electronic meat probes
Select the factory fuel configuration for your gas supply. Use the exact installation manual for the opening, ventilation, insulating requirements, service access, and clearances; the nominal grill width is not a cutout dimension.
iQue Overview | Broil King
See how Broil King’s iQue controls support smoking, roasting, rotisserie cooking, and grilling. This is a series overview; compare the equipment included with your selected model.
Will it fit your space?
Grill head width44.84 in.
Grill head depth26.37 in.
Grill head height24.89 in.
The grill head measures 44.84 inches wide, 26.37 inches deep and 24.89 inches high. These assembled dimensions are not the installation cutout. The side burner and iQue controller are installed separately; the head dimensions do not describe the combined layout. Use the exact assembly manual for each opening, clearances, ventilation and service access.
Manuals & documents
assembly manual and parts listImperial QS 690 Built-In — 44 Inch · PDF›owner’s manual and warrantyImperial QS 690 Built-In — 44 Inch · PDF›
Follow the assembly documents for your selected fuel.
Specifications
- Fuel
- Propane
- Primary cooking area
- 750 sq. in.
- Main burners
- 6 stainless steel Dual-Tube burners
- Cooking grids
- Cast stainless steel
- Ignition
- Electronic
- Cookboxes
- 2 independent cooking areas
- Rotisserie kit
- Included
- Main burner output
- 60,000 BTU
- Rear burner output
- 15,000 BTU
- Grill head width
- 44.84 in.
- Grill head depth
- 26.37 in.
- Grill head height
- 24.89 in.
- iQue controller
- Included
- Electronic meat probes
- 2 included
- Separate side burner
- 10,000 BTU infrared
- Fuel
- Natural gas
- Primary cooking area
- 750 sq. in.
- Main burners
- 6 stainless steel Dual-Tube burners
- Cooking grids
- Cast stainless steel
- Ignition
- Electronic
- Cookboxes
- 2 independent cooking areas
- Rotisserie kit
- Included
- Main burner output
- 60,000 BTU
- Rear burner output
- 15,000 BTU
- Grill head width
- 44.84 in.
- Grill head depth
- 26.37 in.
- Grill head height
- 24.89 in.
- iQue controller
- Included
- Electronic meat probes
- 2 included
- Separate side burner
- 10,000 BTU infrared
Common questions
How much cooking space does this grill provide?
The 750-square-inch primary cooking area uses 6 stainless steel Dual-Tube burners and cast stainless steel cooking grids. Two separate cookboxes divide the cooking area.
What dimensions should I use when planning the installation?
The grill head measures 44.84 inches wide, 26.37 inches deep and 24.89 inches high. These assembled dimensions are not the installation cutout. The side burner and iQue controller are installed separately; the head dimensions do not describe the combined layout. Use the exact assembly manual for each opening, clearances, ventilation and service access.
What equipment is included?
A rotisserie kit is included with the grill head. The iQue controller and two electronic meat probes are also included. This package includes a separate 10,000 BTU infrared side burner.
How should I select fuel?
Select the factory fuel configuration for your gas supply. Use the exact installation manual for the opening, ventilation, insulating requirements, service access, and clearances; the nominal grill width is not a cutout dimension.
Does this model include iQue controls?
Yes. The iQue controller is included with Wi-Fi and Bluetooth connectivity and two electronic meat probes. The controller offers Smoke, Roast and Grill presets; use the control instructions for the selected cooking mode.
How should I care for the grill?
Follow the cleaning and maintenance instructions in the owner’s manual for the cooking grids, burners, cookbox and exterior. Keep the grease tray clean and use care products suitable for the stainless steel finish.
What warranty coverage applies?
The stainless steel lid components and cookbox have limited lifetime coverage. Cast stainless steel grids, Dual-Tube burners, and remaining parts and paint have 15-year limited coverage. The iQue control has 3-year limited coverage. Coverage is subject to the full manufacturer warranty and its domestic-use, installation and maintenance terms.
