Dimplex Heater-Blower Assembly — 2203690100RP

The ceramic heater assembly with cutout identified in the exact DFR2651L manufacturer service table.

$139.00
NO SALES TAX on this itemExcluding FL and CA
Out of Stock
FREE ShippingShipping details
Hassle Free ReturnsReturn details
Speak to an Expert
1. Model

Model 2203690100RP

Service part2203690100RP
Manufacturer descriptionCeramic heater assembly with cutout
Reviewed applianceDFR2651L / 6908932259
Diagram callout2

Identify the part. Match the model.

Dimplex Heater-Blower Assembly — 2203690100RP
Manufacturer service diagram. Selected replacement part only; complete fireplace not included.

The exact DFR2651L service guide identifies 2203690100RP as the ceramic heater assembly with cutout, shown at callout 2. Use the part number and the complete appliance identification when planning the replacement.

Heating faults do not all have the same cause. The service guide distinguishes the heater assembly from the thermistor, relay board, switchboard and display/control board, so a confirmed diagnosis matters before ordering a component.

The technical image is a manufacturer service diagram showing the assembly’s position. This purchase is the selected heater assembly, not a complete electric fireplace or an electrical upgrade kit.

The right fit starts with the exact model.

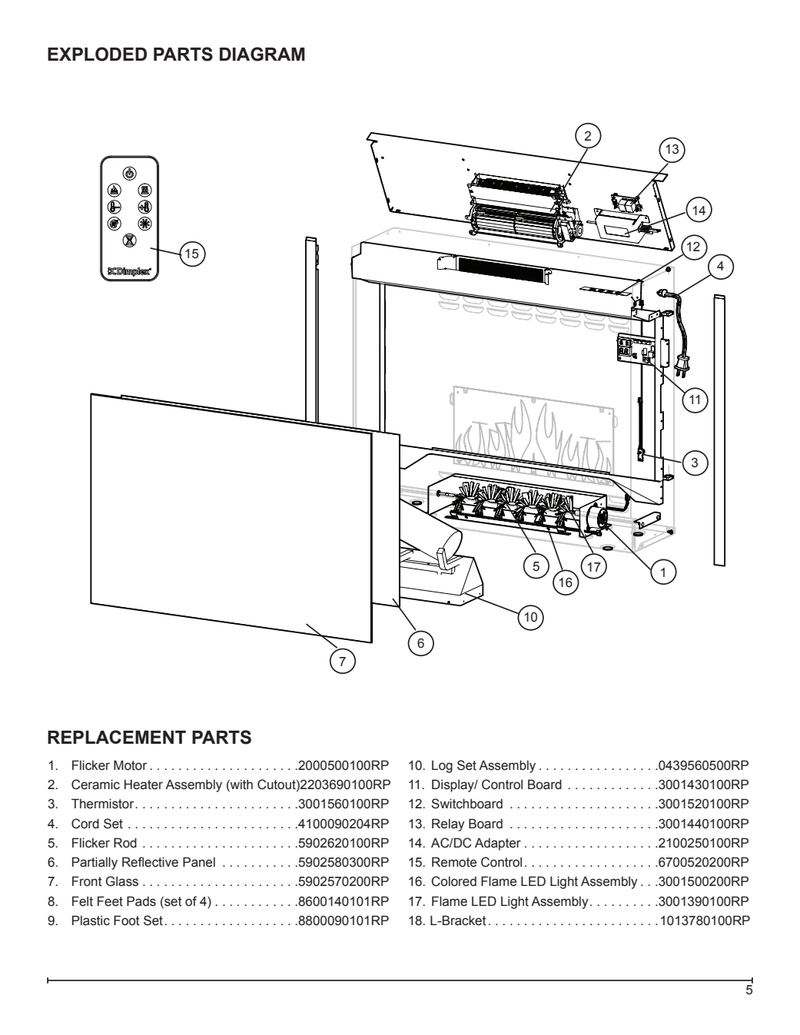

2203690100RP manufacturer service diagram — selected part 2 only; complete fireplace not included
Manufacturer technical reference. Selected part 2 only; full fireplace not included.

DFR2651L / UL part 6908932259 service reference; verify exact appliance revision

Service part2203690100RP
Manufacturer descriptionCeramic heater assembly with cutout
Reviewed applianceDFR2651L / 6908932259
Diagram callout2
InstallationInternal service replacement

Match the complete ordering code

Accessory fit follows the documented model and generation. A similar product name or nominal width does not establish interchangeability.

The right pieces, clearly accounted for.

In the boxContents & quantities
Selected assembly2203690100RP ceramic heater assembly with cutout
Other service componentsControl boards, thermistor and fireplace not included

Know exactly what you’re bringing home.

Exact accessory details

Service part
2203690100RP
Manufacturer description
Ceramic heater assembly with cutout
Reviewed appliance
DFR2651L / 6908932259
Diagram callout
2
Installation
Internal service replacement

Let’s get your project right.

Which application has been verified for this assembly?

The reviewed manufacturer service guide is for DFR2651L, UL part 6908932259, and identifies 2203690100RP as its ceramic heater assembly with cutout. Other applications require their own exact service-part evidence.

Does the assembly include a cutout?

The manufacturer parts table describes the selected part as a ceramic heater assembly with cutout. That description does not establish that separate control boards or a thermistor are included.

Where is it shown in the service diagram?

It is callout 2 in the exact DFR2651L exploded diagram. The other numbered components show the appliance context and are not included with the selected service part.

Will it fit every Dimplex fireplace?

No universal fit is established. Match the complete model, UL part identification and service revision to the listed replacement code before ordering.

Does no heat always mean the assembly has failed?

No. The service troubleshooting table also identifies operating conditions and faults involving other control components. Use the diagnosed cause rather than treating a heater assembly as a guaranteed cure for every no-heat symptom.

Is the thermistor part of this listing?

The manufacturer lists the thermistor separately from 2203690100RP. Do not assume it or a control board is supplied as part of this assembly purchase.

Can this increase the fireplace’s original heating capacity?

This is a specified service replacement, not an approved capacity upgrade. It does not authorize a different supply voltage or a higher appliance rating.

Is it a user-installable plug-in room heater?

No. It is an internal fireplace service assembly. Follow the exact manufacturer service requirements and use qualified service personnel for diagnosis and replacement.

What if the heater repeatedly stops or makes unusual noise?

The service guide distinguishes several causes, including the heater assembly and other operating or maintenance conditions. Arrange diagnosis against that guide before selecting a replacement part.

What should I record before requesting the part?

Keep the complete appliance model, UL part number, serial/modification details and the diagnosed fault with the 2203690100RP ordering code. That gives service support the information needed to check the application.

CONFIDENCE BEYOND THE FIRST FIRE

The right fit. The right support.

Keep the exact accessory code, appliance model and purchase record together for replacement-part and fit support. This separate accessory does not automatically inherit the fireplace’s warranty period.

Accessory identity2203690100RP
Documented applicationDFR2651L / UL part 6908932259 service reference; verify exact appliance revision
Read the applicable manufacturer service guide

Manuals & documents

2203690100RP exact application service diagram & parts reference
