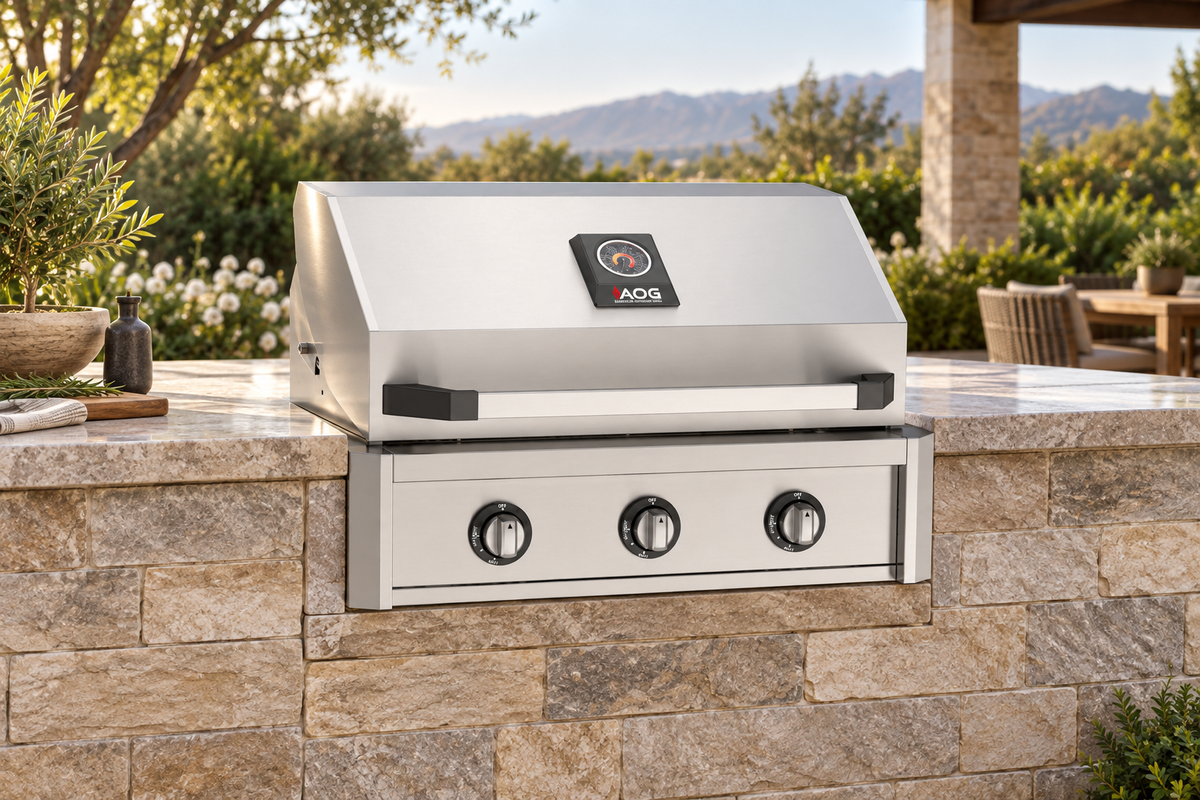

AOG 30″ T Series Built-in Grill
AMERICAN OUTDOOR GRILL
AOG 30″ T Series Built-in Grill
AOG T Series · Built-in
$3,539.00
The T-Series grills feature a Flame Thrower piezo ignition system that eliminates the need for electricity or batteries. Self-sufficient by design, they deliver dependable performance in any setting. Designed to elevate the variability of grilling options for every backyard cook.
540 sq. in. (30″ × 18″)Cooking area
45,000 BTU/hMain burner output
Delivery timing confirmed with order
Free shippingOn qualifying orders
Hassle-free returnsOn eligible unused purchases
American Outdoor Grill warrantyLifetime coverage on select components
EXPLORE AMERICAN OUTDOOR GRILL
Build the whole outdoor kitchen.
BRING THE KITCHEN TOGETHER
More accessories for your configuration.
AOG T Series
AOG 30″ T Series Built-in Grill
The T-Series grills feature a Flame Thrower piezo ignition system that eliminates the need for electricity or batteries. Self-sufficient by design, they deliver dependable performance in any setting. Designed to elevate the variability of grilling options for every backyard cook.
01
Diamond Sear™ 304 Stainless Steel Cooking Grids
304 stainless steel construction and patented design provide more optimal, even heat transfer to food. More points of contact help sear your meat better and faster resulting in quicker cooking times and less gas use.
02
304 Stainless Steel Tubular Burners
Provide even heat and durability with a lifetime warranty.
03

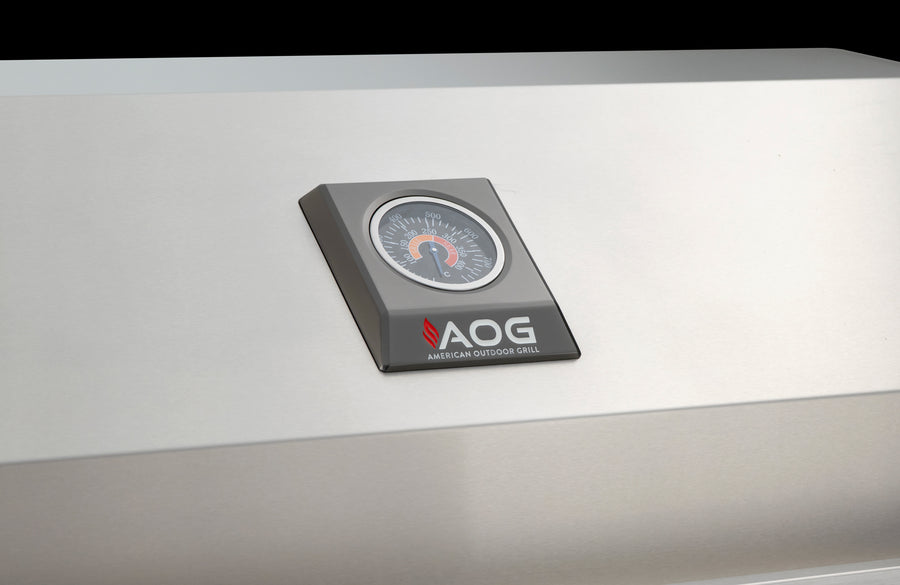

Large Easy To Read Analog Thermometer
This easy to read analog thermometer features a die cast alloy bezel with a gun metal finish for durability. Reads up to 800 degrees Fahrenheit.
04

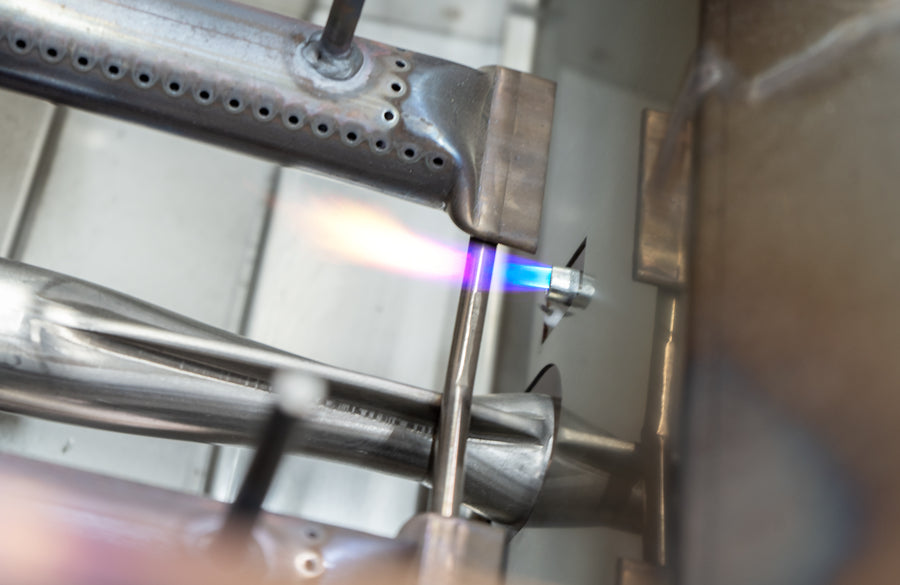

Flame Thrower Ignition
Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish. Turn the knobs for a piezo ignition that lights every time and eliminating the need for electricity or batteries.
05

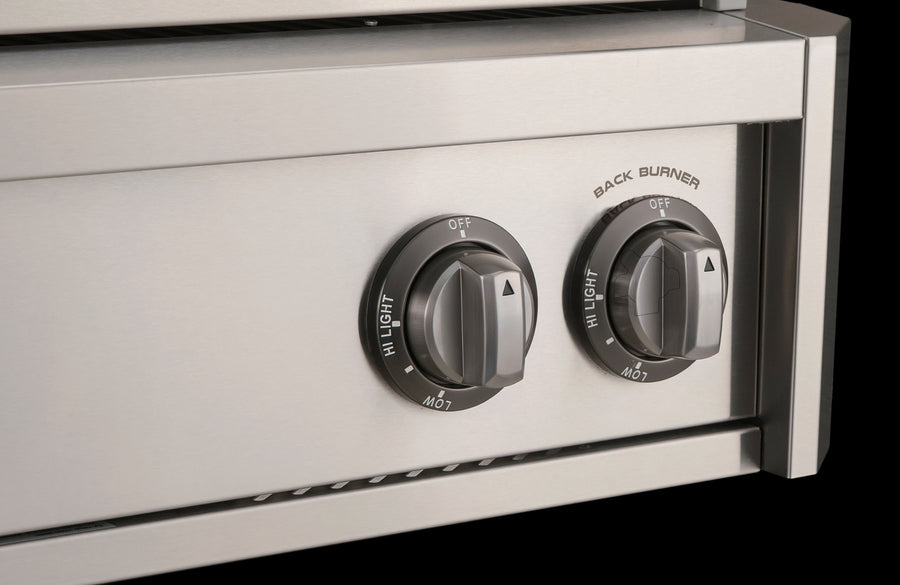

Accessible Knobs
Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish. Easy to use knobs accessible to all.
ENGINEERED, FABRICATED AND ASSEMBLED IN THE USA
Made for the Moments That Matter.
Designed, engineered, and assembled in the USA, AOG grills are built with premium materials like commercial-grade stainless steel and solid brass components, chosen for durability and long-term performance. From the fully featured L-Series to the purpose-built T-Series, every grill is made to deliver consistent results, season after season.
Diamond Sear™ cooking grids304 stainless-steel burnersFlame Thrower ignition
NEW American Outdoor Grill
Built on American craftsmanship
PRODUCT DETAILS
Plan, install and enjoy with confidence.
The product-specific information below helps you confirm the right configuration before ordering.
Product overview

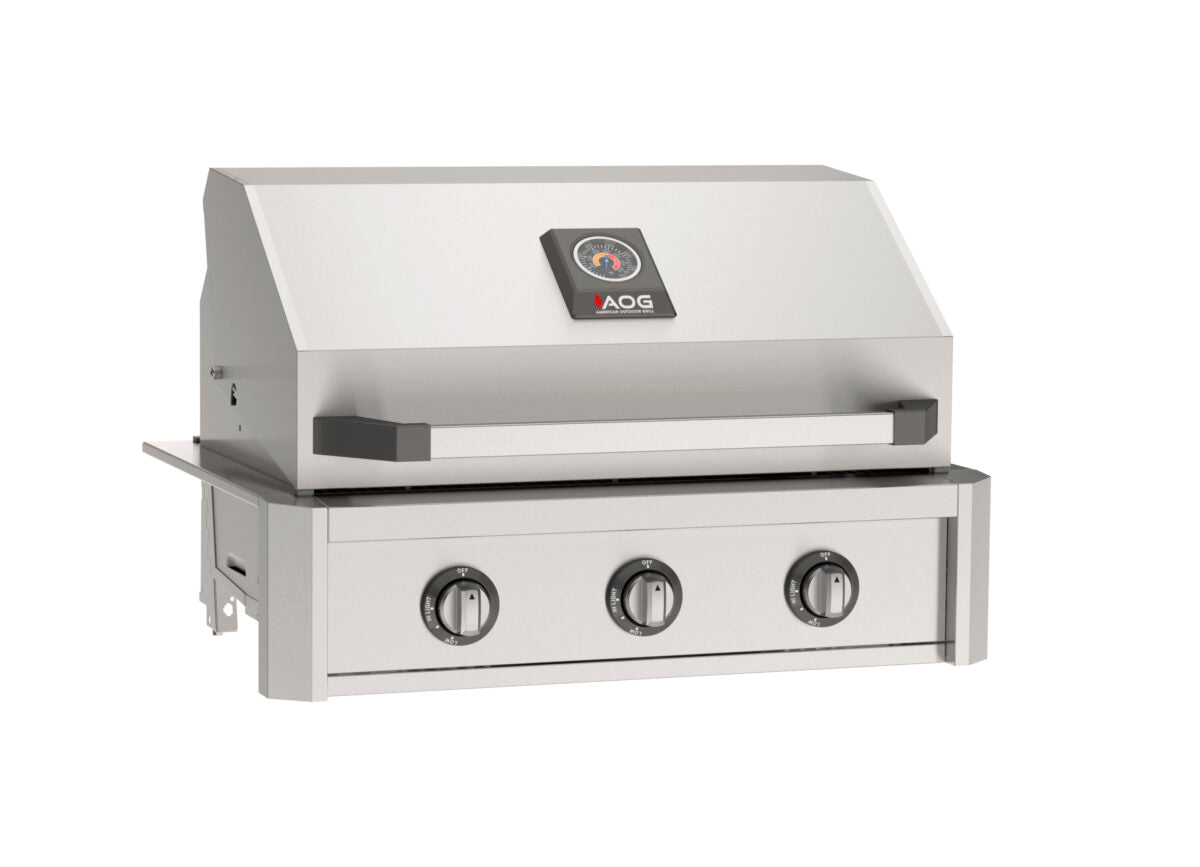

American Outdoor Grill 30 Inch Built In Grill
- Diamond Sear™ 304 Stainless Steel Cooking Grids
- Heavy Duty 304 SS Tubular Burners
- Flame Thrower Ignition System
- Heavy Duty Warming Rack
- Vaporizer Panels for Precise Heating Performance
- Spring-Assisted Hood for comfortable lifting
- Large Easy-to-Read Analog Thermometer with Die Cast Alloy Bezel in Gun Metal Finish
- Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish
- No electricity or batteries required
- Cut-out: 30.5″ w x 19.5” d x 8.5” h
- Available in Natural Gas or LP (replace the N with a P for Propane)
Dimensions & installation
For installation in a noncombustible enclosure, use the grill cutout shown below. A combustible enclosure requires the 30-IL-C insulating liner and its separate cutout. Follow the installation manual for ventilation, gas connections, electrical supply and all required clearances. Heights shown are measured from the countertop hanger, not from the bottom of the grill.
- Cooking area
- 540 sq. in. (30″ × 18″)
- Main burner output
- 45,000 BTU/h
- Manufacturer cutout
- 30.5″ W × 19.5″ D × 8.5″ H
- Main burners
- 3 stainless-steel burners
- Cooking grids
- Diamond Sear™ 304 stainless steel
- Ignition
- Flame Thrower piezo ignition
- Power supply
- No electricity or batteries required
- Maximum width × depth
- 33.875″ W × 25.875″ D
- Height from countertop hanger — hood closed
- 14″
- Height from countertop hanger — hood open
- 22.25″
- Counter overhang opening width
- 34.5″
- Installation
- Built-in; outdoor use only

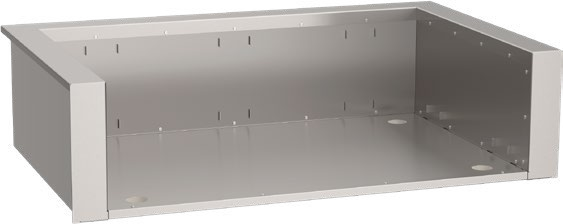

- Insulating liner for combustible enclosure
- 30-IL-C; separate liner cutout applies
What’s included
- Gas conversion kit

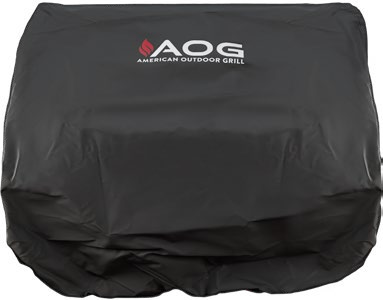

- Vinyl protective cover
Manuals & documents 6
Installation GuidePDF documentQuick Start GuidePDF document2026 Specification GuidePDF document2026 Product CatalogPDF documentInstallation GuidePDF document30-inch T Series dimensional drawingPDF documentManufacturer warranty & support
American Outdoor Grill warranty highlights
Coverage applies to the original purchaser for products installed in the United States or Canada and operated and maintained for single-family residential use. Proof of purchase is required. Coverage varies by component; labor and labor-related charges are excluded except under separate written programs.
- Stainless-steel burners and barbecue housings
- Lifetime for the original purchaser
- Diamond Sear stainless-steel cooking grids
- 15 years
- Valves, controls and manifolds
- 10 years
- Backburner, rotisserie kit and vaporizer panels
- 3 years
- Ignition systems (excluding batteries), electronic components, grill parts and accessories
- 2 years
Shipping & returns
Delivery timing and availability are confirmed with your order. Free shipping applies to qualifying orders, and eligible unused purchases may be returned under the Hearth Outpost returns policy.
