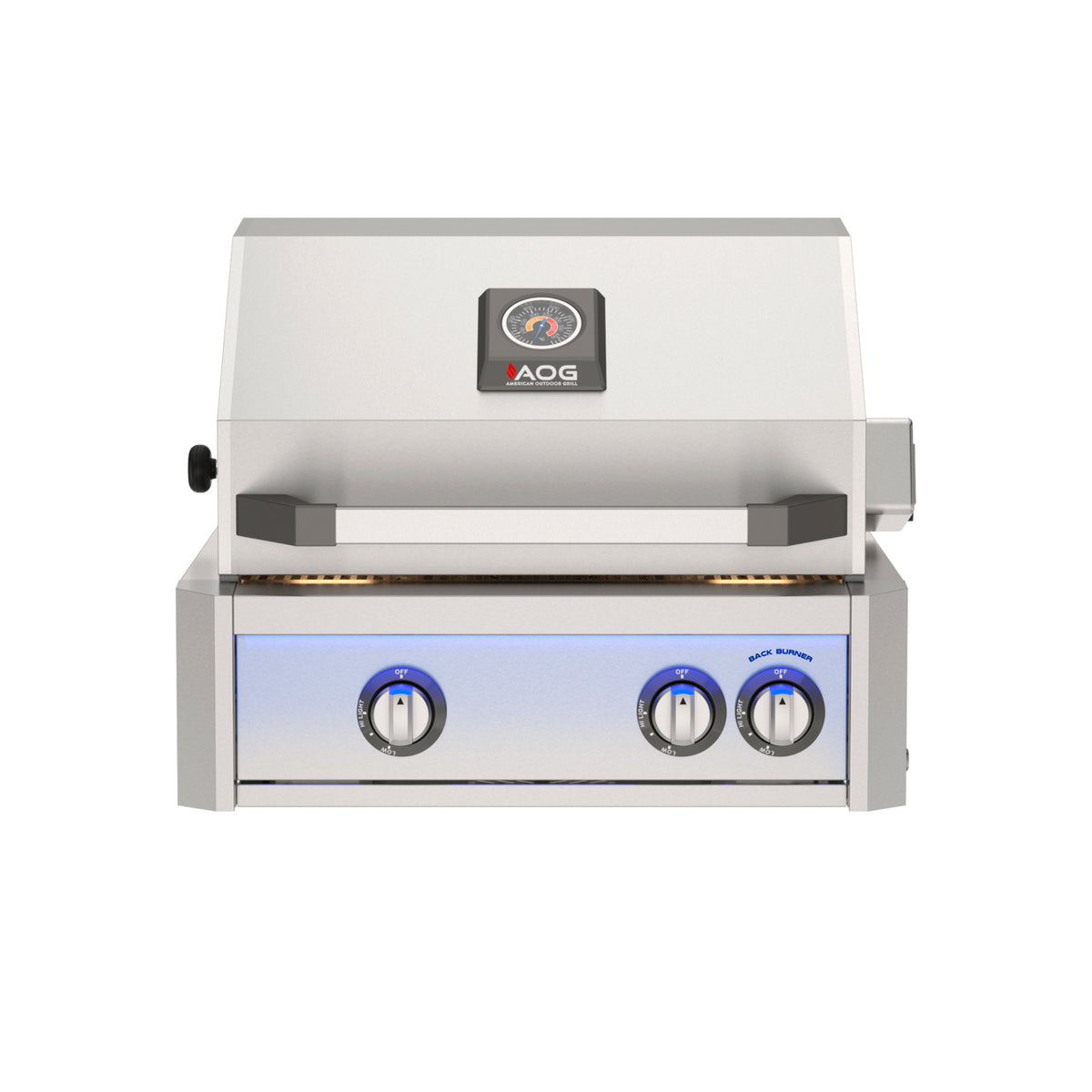

AOG 24″ L Series Built-In Grill — stainless steel
AMERICAN OUTDOOR GRILL

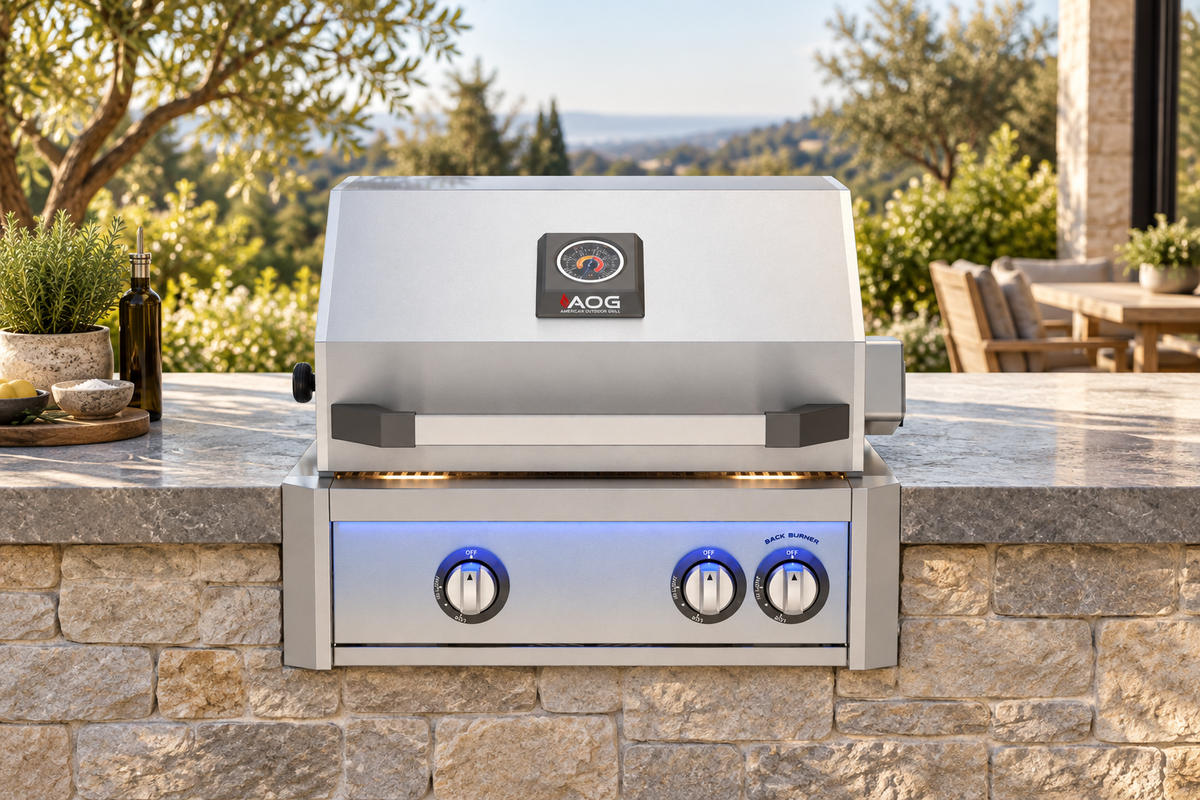

AOG 24″ L Series Built-in Grill with Lights
AOG L Series · Built-in
$4,088.00
The L-Series grills make a bold statement with an external, multi-color LED light bar, interior halogen lights and striking Gun Metal finish throughout. The Flame Thrower ignition system provides easy and consistent lighting.
Rotisserie kit included
432 sq. in. (24″ × 18″)Cooking area
32,000 BTU/hMain burner output
Delivery timing confirmed with order
Free shippingOn qualifying orders
Hassle-free returnsOn eligible unused purchases
American Outdoor Grill warrantyLifetime coverage on select components
EXPLORE AMERICAN OUTDOOR GRILL
Build the whole outdoor kitchen.
BRING THE KITCHEN TOGETHER
More accessories for your configuration.
AOG L Series
About The Built-in L Series
The L-Series grills make a bold statement with an external, multi-color LED light bar, interior halogen lights and striking Gun Metal finish throughout. The Flame Thrower ignition system provides easy and consistent lighting. Designed to stand out after sunset, the L-Series brings elevated control and a variety of cooking options to every cook.
01
Diamond Sear™ 304 Stainless Steel Cooking Grids
304 stainless steel construction and patented design provide more optimal, even heat transfer to food. More points of contact help sear your meat better and faster resulting in quicker cooking times and less gas use.
02
304 Stainless Steel Tubular Burners
Provide even heat and durability with a lifetime warranty.
03

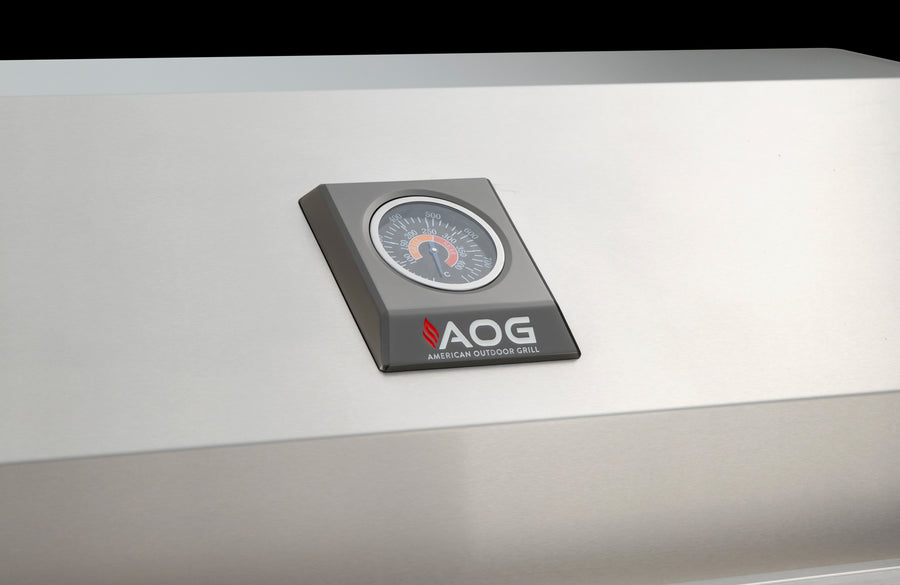

Large Easy To Read Analog Thermometer
This easy to read analog thermometer features a die cast alloy bezel with a gun metal finish for durability. Reads up to 800 degrees Fahrenheit.
04
Multi-Color Light Bar
With remote control to change colors to your liking. Convenient built-in pocket in drip tray to tuck away the remote control when not in use.
05

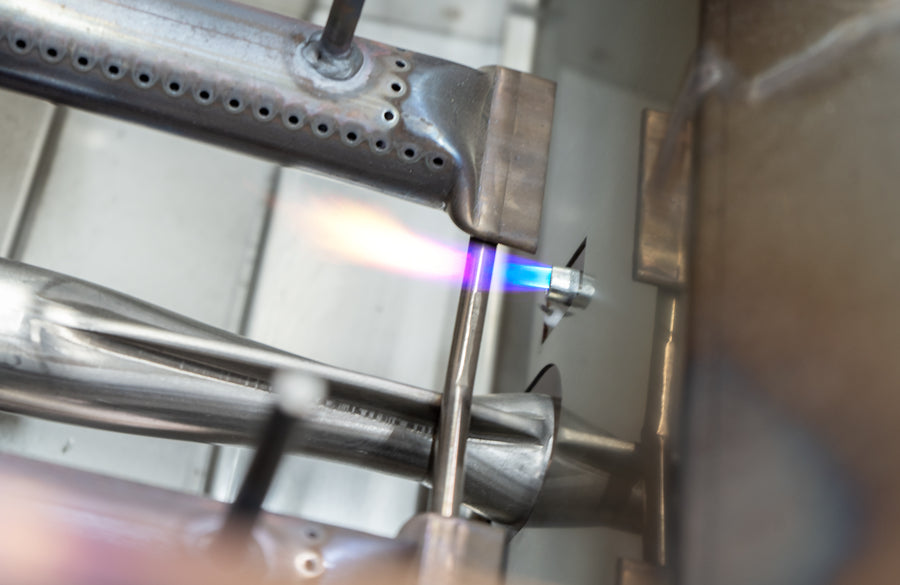

Flame Thrower Ignition
Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish. Turn the knobs for a piezo ignition that lights every time and eliminating the need for electricity or batteries.
06

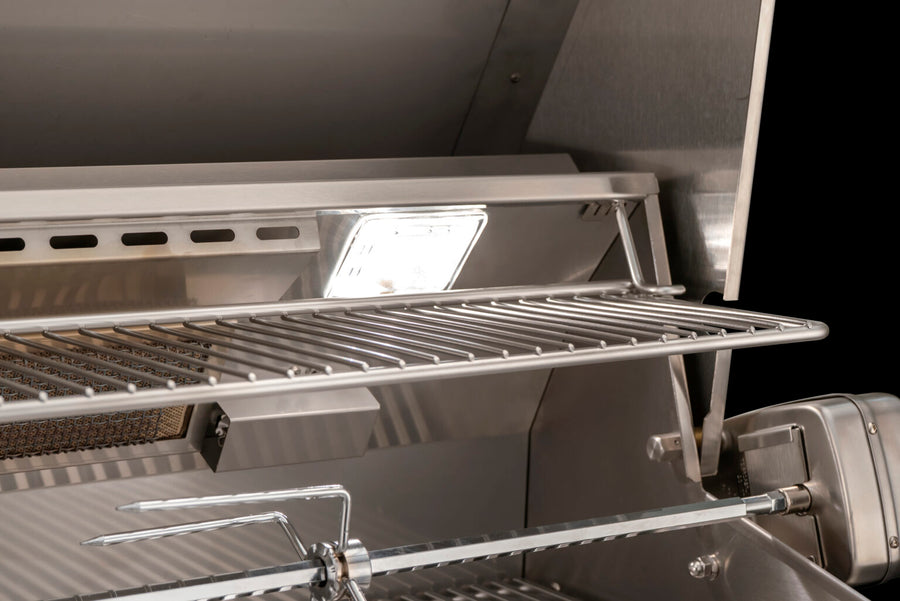

Internal Halogen Lights
Light up the evening with 12V halogen lights. Don’t let the sunset stop your grilling.
07

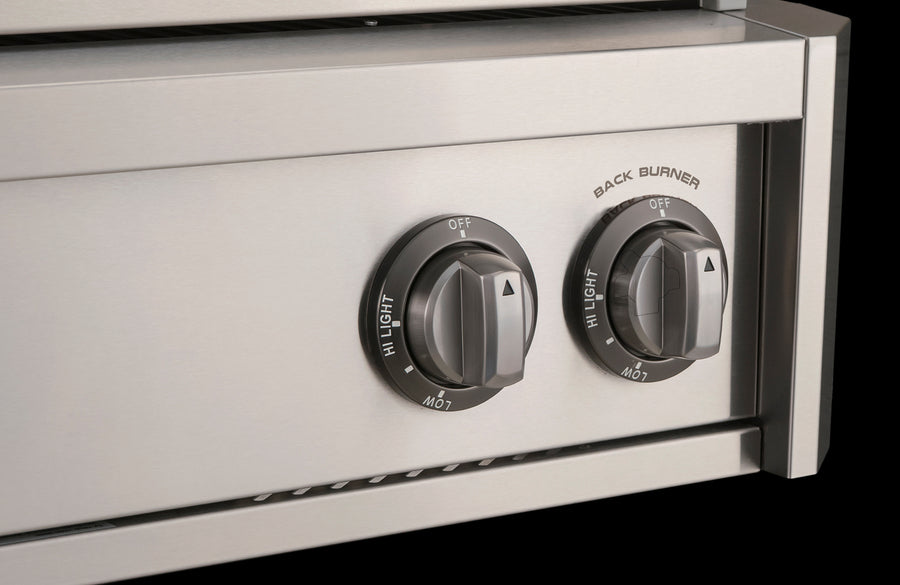

Accessible Knobs
Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish. Easy to use knobs accessible to all.
ENGINEERED, FABRICATED AND ASSEMBLED IN THE USA
Made for the Moments That Matter.
Designed, engineered, and assembled in the USA, AOG grills are built with premium materials like commercial-grade stainless steel and solid brass components, chosen for durability and long-term performance. From the fully featured L-Series to the purpose-built T-Series, every grill is made to deliver consistent results, season after season.
Diamond Sear™ cooking grids304 stainless-steel burnersFlame Thrower ignition
NEW American Outdoor Grill
Built on American craftsmanship
PRODUCT DETAILS
Plan, install and enjoy with confidence.
The product-specific information below helps you confirm the right configuration before ordering.
Product overview
American Outdoor Grill 24 Inch Built In Grill With Lights
- Diamond Sear™ 304 Stainless Steel Cooking Grids for precise grilling
- Heavy Duty 304 SS Tubular Burners last for a lifetime
- Flame Thrower Ignition System lights every time
- Internal Halogen lights for evening grilling
- Multi Color Light Bar to provide style and ambience
- Heavy Duty Warming Rack provides room for indirect grilling
- Vaporizer Panels for even heat and minimal flare ups
- Spring-Assisted Hood for comfortable lifting
- Large Easy-to-Read Analog Thermometer with Die Cast Alloy Bezel in Gun Metal Finish
- Accessible Control Knobs with Die Cast Alloy Bezels in Gun Metal Finish for ease of use
- Cut-out: 24.5″ w x 19.5” d x 8.5” h
- Available in Natural Gas or LP (replace the N with a P for Propane)
Dimensions & installation
For installation in a noncombustible enclosure, use the grill cutout shown below. A combustible enclosure requires the 24-IL-C insulating liner and its separate cutout. Follow the installation manual for ventilation, gas connections, electrical supply and all required clearances. Heights shown are measured from the countertop hanger, not from the bottom of the grill.
- Cooking area
- 432 sq. in. (24″ × 18″)
- Main burner output
- 32,000 BTU/h
- Manufacturer cutout
- 24½″ W × 19½″ D × 8½″ H
- Main burners
- 2 stainless-steel burners
- Backburner output
- 10,000 BTU/h
- Maximum width × depth
- 27⅞″ W × 25⅞″ D
- Height from countertop hanger — hood closed
- 14″
- Height from countertop hanger — hood open
- 22¼″
- Counter overhang opening width
- 28½″
- Cooking grids
- Diamond Sear™ 304 stainless steel
- Ignition
- Flame Thrower piezo ignition
- Lighting power supply
- 120 VAC, minimum 15 A GFCI-protected circuit
- Installation
- Built-in; outdoor use only

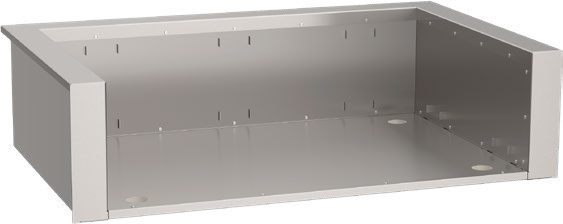

- Insulating liner for combustible enclosure
- 24-IL-C; separate liner cutout applies
What’s included
- 24-inch L Series built-in grill
- Diamond Sear™ stainless-steel cooking grids
- Stainless-steel warming rack
- Vaporizer panels
- Backburner and rotisserie kit

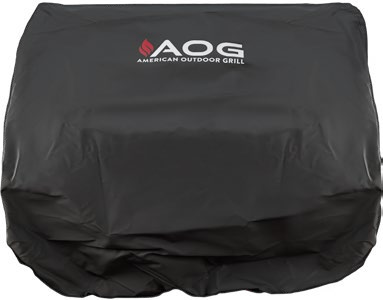

- Vinyl protective cover
- Gas conversion kit
- Light-bar remote control and power supply
Manuals & documents 6
User Manual & Installation Guide — L and T SeriesPDF documentQuick Start GuidePDF document24-inch L Series dimensional drawingPDF document2026 Specification GuidePDF document2026 Product CatalogPDF documentInsulating Liner Installation Guide — 24-IL-CPDF documentManufacturer warranty & support
American Outdoor Grill warranty highlights
Coverage applies to the original purchaser for products installed in the United States or Canada and operated and maintained for single-family residential use. Proof of purchase is required. Coverage varies by component; labor and labor-related charges are excluded except under separate written programs.
- Stainless-steel burners and barbecue housings
- Lifetime for the original purchaser
- Diamond Sear stainless-steel cooking grids
- 15 years
- Valves, controls and manifolds
- 10 years
- Backburner, rotisserie kit and vaporizer panels
- 3 years
- Ignition systems (excluding batteries), electronic components, grill parts and accessories
- 2 years
Shipping & returns
Delivery timing and availability are confirmed with your order. Free shipping applies to qualifying orders, and eligible unused purchases may be returned under the Hearth Outpost returns policy.
Common questions
Which fuel type should I choose?
Available in Natural Gas or LP (replace the N with a P for Propane).
What installation information is provided?
The installation manual covers gas connections, electrical supply, ventilation and clearances. The dimensional drawing and specification guide are included under Manuals & documents.
What does the warranty cover?
The warranty section lists American Outdoor Grill coverage for this product by component.
