01
1,200 CFM ventilation
Two 600 CFM blowers move smoke, heat and cooking vapors away from the outdoor cooking area.

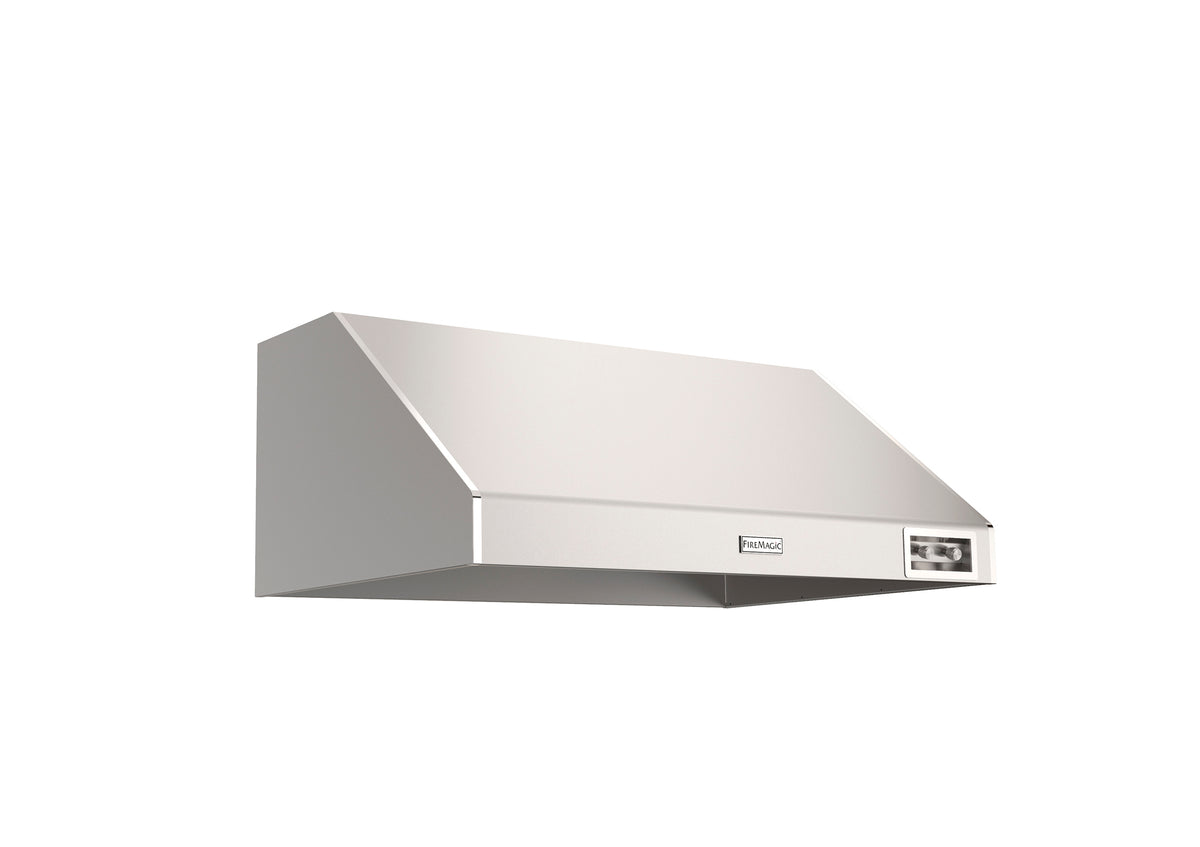

Vent Hood — product view
FIRE MAGIC
Vent Hood
Fire Magic Ventilation & Insulating Liners · Ventilation & Liners
$4,384.80$4,872.00
Flexible payment options are available at checkout.
Capture smoke, heat and cooking vapors above a Fire Magic outdoor grill with a deep stainless-steel hood and dual 600 CFM blowers.
120VAC / 60Hz / 15 AMP min. / GFCI outletElectrical requirements
1200 CFM (600 CFM each), 120 voltsBlowers (2)
Delivery timing confirmed with orderDistributor availability is verified
Free shippingOn qualifying orders
Hassle-free returnsOn eligible unused purchases
Fire Magic warrantyCoverage varies by component
Fire Magic Ventilation & Insulating Liners
Build the supporting system into the plan.
The 30-inch-deep hood extends over the cooking surface for outdoor ventilation, while integrated lighting illuminates the grill after dark. Choose a 36-, 42-, 48- or 60-inch width sized to the cooking appliance and installation plan.
02
30-inch-deep capture area
The deep hood projects over the grill to improve capture in an outdoor installation.
03
Integrated task lighting
Built-in halogen lighting illuminates the cooking surface for evening use.
04
Four available widths
Choose 36-, 42-, 48- or 60-inch overall width to suit the appliance and enclosure plan.
MADE IN THE USA · SINCE 1937
Built for generations of outdoor cooking.
Fire Magic pairs substantial stainless-steel construction with a coordinated family of cooking, refrigeration, storage, and entertaining products.
Heavy-gauge stainless constructionComplete outdoor-kitchen systemBuilt for lasting performance
The Fire Magic experience
See how Fire Magic brings premium cooking, refrigeration, storage, and entertaining together in one complete outdoor kitchen.
PRODUCT DETAILS
Plan, install and enjoy with confidence.
The product-specific information below helps you confirm the right configuration before ordering.
Product overview
Capture smoke, heat and cooking vapors above a Fire Magic outdoor grill with a deep stainless-steel hood and dual 600 CFM blowers.
The 30-inch-deep hood extends over the cooking surface for outdoor ventilation, while integrated lighting illuminates the grill after dark. Choose a 36-, 42-, 48- or 60-inch width sized to the cooking appliance and installation plan.
Features
- 1,200 CFM ventilation Two 600 CFM blowers move smoke, heat and cooking vapors away from the outdoor cooking area.
- 30-inch-deep capture area The deep hood projects over the grill to improve capture in an outdoor installation.
- Integrated task lighting Built-in halogen lighting illuminates the cooking surface for evening use.
- Four available widths Choose 36-, 42-, 48- or 60-inch overall width to suit the appliance and enclosure plan.
What’s included
- Vent Hood
Planning and installation
Plan the installation around the published overall dimensions — 36-vh-7 of 36″ W × 30″ D × 18″ H; overall dimensions — 42-vh-7 of 42″ W × 30″ D × 18″ H; overall dimensions — 48-vh-7 of 48″ W × 30″ D × 18″ H; overall dimensions — 60-vh-7 of 60″ W × 30″ D × 18″ H.
Dimensions & installation
Plan the installation around the published overall dimensions — 36-vh-7 of 36″ W × 30″ D × 18″ H; overall dimensions — 42-vh-7 of 42″ W × 30″ D × 18″ H; overall dimensions — 48-vh-7 of 48″ W × 30″ D × 18″ H; overall dimensions — 60-vh-7 of 60″ W × 30″ D × 18″ H.
- Electrical requirements
- 120VAC / 60Hz / 15 AMP min. / GFCI outlet
- Blowers (2)
- 1200 CFM (600 CFM each), 120 volts
- Power Consumption
- 1010 watts
- Halogen Lights Rating
- 120V / 50 watt halogen bulb
- Overall dimensions — 36-VH-7
- 36″ W × 30″ D × 18″ H
- Overall dimensions — 42-VH-7
- 42″ W × 30″ D × 18″ H
- Overall dimensions — 48-VH-7
- 48″ W × 30″ D × 18″ H
- Overall dimensions — 60-VH-7
- 60″ W × 30″ D × 18″ H
What’s included
- Vent Hood
Shipping, returns & warranty
Delivery timing and availability are confirmed with your order. Free shipping applies to qualifying orders, and eligible unused purchases may be returned under the Hearth Outpost returns policy. Fire Magic warranty coverage varies by product and component; consult the included warranty document for exact terms.
Common questions
How much airflow does the hood provide?
Two 600 CFM blowers provide 1,200 CFM of combined ventilation.
Which width should I choose?
Choose the 36-, 42-, 48- or 60-inch hood specified for the cooking appliance and installation layout; the hood should provide suitable coverage over the cooking surface.
What electrical service is required?
Plan for 120 VAC, 60 Hz power on a minimum 15-amp GFCI-protected circuit.
